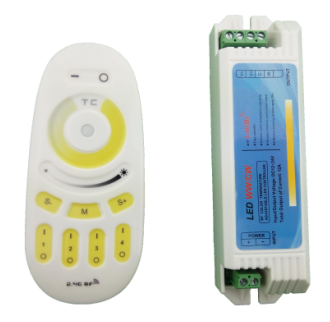

2.4G CCT controller
MW37
4 Zone 2.4G color temperature controller
Product Description
This 4 zone 2.4G RF color temperature controller adopt the touch RF wireless remote control, can adjust to change the lights color temperature according to the customer’s preference. 2.4G frequency make it more stable and more strong anti-jamming capability to use.
Besides, one remote can controlled 4 group of light independent, make it realize the one-to-many manipulation control.
Technical Parameters
● Working temperature：-20~55℃
● Supply voltage：DC12V~24V
● Output：2 Channel
● Connection mode：Common anode
● Controller size：L152×W41×H28mm
● Net weight：110g
● Static power consumption：<1W
● Output current：<6A/CH
● Output power：12V:<144W；24V:<288W

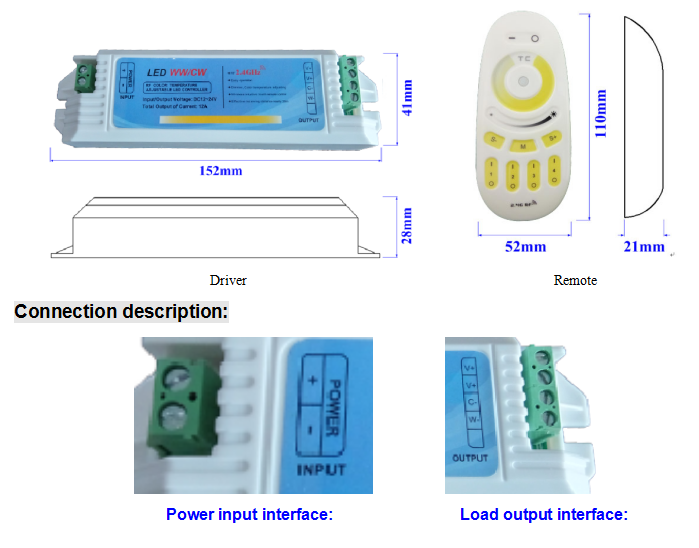

External dimension
Direction for use

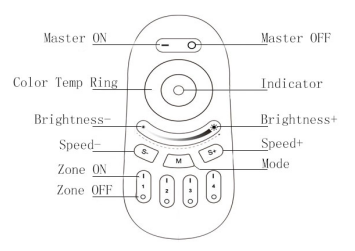

Remote Description
●Function introduction：
1、Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller, and the RF remote can controlled it across obstacles.
2、Adopt the press key and touch wheel control remote, slightly touch the color wheel can adjust the light’s brightness smoothly .
● Operation method:
1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
2.Only the power button is effective in the OFF station, press the power button for the first time then controller will enter to the last mode before turn of the controller last time (memory off function).
3. Mode+/- can select the 8 modes as below:
● Match code and clean code Instruction：
For a new combination, the remote must to match code white the receiver then it can be used normally. Before match code, you must ensure the LED Controller, power supply and led light are connected correctly, then cut off the power ,and re-power it again.
Match code: Please press the “Group X(X=1,2,3,4) ON” Button 2 seconds within 8 seconds after power the controller, then the output led light will be flash for 6 times, this means the remote is match code with this receiver successfully, they can used normally.
Clean code: if user want to change the light control group, he can clean the code off. After clean code the remote and receiver will be in the initial state. Operation method: Press the “Group X(X=1,2,3,4) OFF ” Button 2 seconds within 8 seconds when power the controller, till the output light flash for 6 times, means clean code successfully.
Remarks: The regular product for sale is a kit (one remote and 1 receiver). The user can re-programmed freely as needed. One remote can control countless receivers, but one receiver can only be controlled by two remotes max.

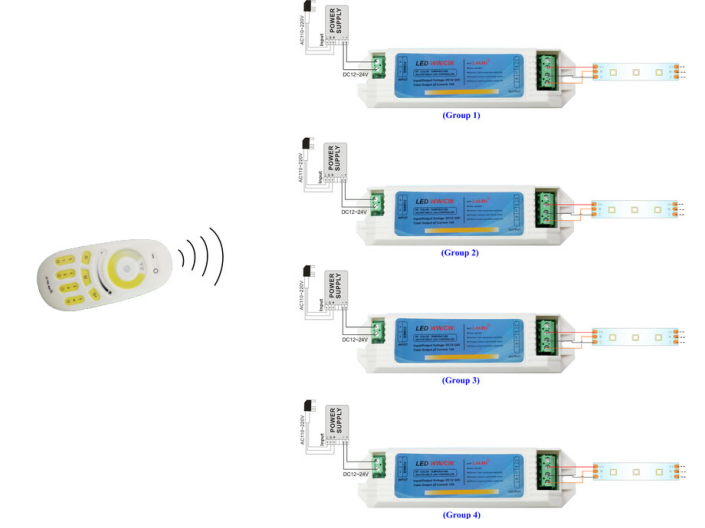

Typical Application
Cautions
This 4 zone 2.4G RF color temperature controller adopt the touch RF wireless remote control, can adjust to change the lights color temperature according to the customer’s preference. 2.4G frequency make it more stable and more strong anti-jamming capability to use.
Besides, one remote can controlled 4 group of light independent, make it realize the one-to-many manipulation control.
Technical Parameters
● Working temperature：-20~55℃
● Supply voltage：DC12V~24V
● Output：2 Channel
● Connection mode：Common anode
● Controller size：L152×W41×H28mm
● Net weight：110g
● Static power consumption：<1W
● Output current：<6A/CH
● Output power：12V:<144W；24V:<288W
External dimension
Direction for use
Remote Description
| Item | Description | remark |
| Work voltage | 3V | AAA*2 |
| Radio Frequency | 2400-2483.5MHz | |
| Modulation | GFSK | |
| Transmit power | 6db | |
| Standby power consumption | 10uA | |
| Remote distance | 20-30 meters | |
| Size | 110*55*20mm |
●Function introduction：
1、Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller, and the RF remote can controlled it across obstacles.
2、Adopt the press key and touch wheel control remote, slightly touch the color wheel can adjust the light’s brightness smoothly .
● Operation method:
1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
2.Only the power button is effective in the OFF station, press the power button for the first time then controller will enter to the last mode before turn of the controller last time (memory off function).
3. Mode+/- can select the 8 modes as below:
| No | Mode |
| 1 | Warm color |
| 2 | Cool color |
| 3 | Warm color fade in And fade out |
| 4 | Cool color fade in And fade out |
| 5 | Warm color & Cool color Cross fade |
| 6 | Warm color strobe flash |
| 7 | Cool color strobe flash |
| 8 | Warm color & Cool color strobe flash |
● Match code and clean code Instruction：
For a new combination, the remote must to match code white the receiver then it can be used normally. Before match code, you must ensure the LED Controller, power supply and led light are connected correctly, then cut off the power ,and re-power it again.
Match code: Please press the “Group X(X=1,2,3,4) ON” Button 2 seconds within 8 seconds after power the controller, then the output led light will be flash for 6 times, this means the remote is match code with this receiver successfully, they can used normally.
Clean code: if user want to change the light control group, he can clean the code off. After clean code the remote and receiver will be in the initial state. Operation method: Press the “Group X(X=1,2,3,4) OFF ” Button 2 seconds within 8 seconds when power the controller, till the output light flash for 6 times, means clean code successfully.
Remarks: The regular product for sale is a kit (one remote and 1 receiver). The user can re-programmed freely as needed. One remote can control countless receivers, but one receiver can only be controlled by two remotes max.
Typical Application
Cautions
- This products Input voltage is DC12V,other input voltage are not allowed.
- Lead wire should be connected correctly, according to the wire color and the connecting diagram offers.
- Overload are prohibited.
