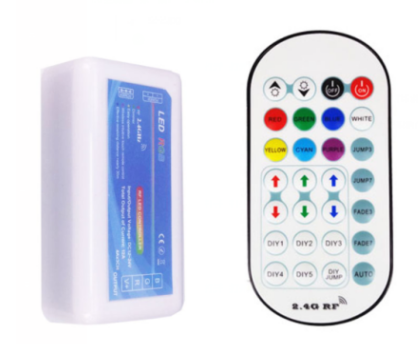

2.4G RGB Controller
NT05
2.4G 28keys RGB Controller
Product Description
This 2.4G 28keys RGB Controller is human touch type and key control type universal RGB controller. Adopting the most advance PWM control technology, can control all kinds of 3 channel (common anode) and 4 wires LED lights. Such as LED module, led strip, led control box, led source,etc. This controller is easy to connected with wires and very simple to use. It is with synchronous indicating light and power off memory function. User can choose different changing mode, adjust the speed and brightness,turn on/off by the remote controlling. User can get flash effect, strobe effect, fade effect etc according to their demand .
Technical Parameters
● Working temperature：-20~55℃
● Supply voltage：DC12V~24V
● Output：3 Channel
● Connection mode：Common anode
● Controller size：L85×W45×H23mm
● Net weight：86g
● Static power consumption：<1W
● Output current：<4A/CH
● Output power：12V:<144W；24V:<288W
External dimension
(Receiver size)
Connection description
Power input interface:
Power 1: Adopt wire plug-in and screwing terminal power input
Power 2:Adopt the DC female Connector.
Load output interface:
Adopt wire plug-in and screwing terminal output
Direction for use:
● Remote Function introduction：
1、Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller, and the RF remote can control it across obstacles.
2、In the open area remote control distance is about 30 meters.
Direction for use:
● Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
Match code and clean code Instruction：
Match code:
If you want to match code again, Switch on power for controller(within 6 seconds)long press
button. the related led light will be flash for 3 times, that means this group has been Matched code.
Clean code:
If need change the Group combination, the link between remote and receiver can be cleaned. Then rebuild the link as required.
Code clean method：Switch on power for controller(within 6 seconds)long press
button， the related led light will be quickly flash for 9 times, that means this group has been cleaned code.
Typical Application
Cautions
1, This products Input voltage is DC12-24V,other input voltage are not allowed.
2, Lead wire should be connected correctly,according to the wire color and the connecting diagram offers；
3, Overload are prohibited.
4, In order to promote the touch sensitive of the color wheel, please don’t touching the touch color wheel when installing the battery to the remote, if sensitive are low, please remove the battery and re-install it again.
5, Please do not used the controller around a wide range of mental area or do not used nearby strong electromagnetic wave area, otherwise, it will seriously affect the remote distance.
This 2.4G 28keys RGB Controller is human touch type and key control type universal RGB controller. Adopting the most advance PWM control technology, can control all kinds of 3 channel (common anode) and 4 wires LED lights. Such as LED module, led strip, led control box, led source,etc. This controller is easy to connected with wires and very simple to use. It is with synchronous indicating light and power off memory function. User can choose different changing mode, adjust the speed and brightness,turn on/off by the remote controlling. User can get flash effect, strobe effect, fade effect etc according to their demand .
Technical Parameters
● Working temperature：-20~55℃
● Supply voltage：DC12V~24V
● Output：3 Channel
● Connection mode：Common anode
● Controller size：L85×W45×H23mm
● Net weight：86g
● Static power consumption：<1W
● Output current：<4A/CH
● Output power：12V:<144W；24V:<288W
External dimension
(Receiver size)
Connection description
Power input interface:
Power 1: Adopt wire plug-in and screwing terminal power input
Power 2:Adopt the DC female Connector.
Load output interface:
Adopt wire plug-in and screwing terminal output
Direction for use:
● Remote Function introduction：
1、Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller, and the RF remote can control it across obstacles.
2、In the open area remote control distance is about 30 meters.
Direction for use:
● Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
- Adopt wireless control method, 28 keys in total, function of each button as below:
| Brightness + | Brightness - | pause | ON/OFF |
| Static red | Static green | Static blue | Static white |
| Static orange | Static cyan | Static dark blue | milk-white |
| Static yellow | Static light blue | Static purple | Green-white |
| Static light yellow | Static sky blue | Static brown | Blue-white |
| Red brightness + | Green brightness + | Blue brightness + | Speed + |
| Red brightness - | Green brightness - | Blue brightness - | Speed - |
| DIY 1 | DIY 2 | DIY 3 | Auto |
| DIY 4 | DIY 5 | DIY 6 | stroboflash |
| 3 color jump | 7 color jump | 3 color fade | 7 color fade |
Match code and clean code Instruction：
Match code:
If you want to match code again, Switch on power for controller(within 6 seconds)long press
button. the related led light will be flash for 3 times, that means this group has been Matched code. Clean code:
If need change the Group combination, the link between remote and receiver can be cleaned. Then rebuild the link as required.
Code clean method：Switch on power for controller(within 6 seconds)long press
button， the related led light will be quickly flash for 9 times, that means this group has been cleaned code. Typical Application
Cautions
1, This products Input voltage is DC12-24V,other input voltage are not allowed.
2, Lead wire should be connected correctly,according to the wire color and the connecting diagram offers；
3, Overload are prohibited.
4, In order to promote the touch sensitive of the color wheel, please don’t touching the touch color wheel when installing the battery to the remote, if sensitive are low, please remove the battery and re-install it again.
5, Please do not used the controller around a wide range of mental area or do not used nearby strong electromagnetic wave area, otherwise, it will seriously affect the remote distance.
